Understanding the Role of Geneva Wheels in Fadal CNC Machines

If you’ve worked with CNC machines for a while, you already know how important timing and coordination are. Even a small mismatch between components can affect the final output. Fadal CNC machines are known for their reliability, but like any system, they depend heavily on how well each internal part works together.One such part that often gets overlooked is the Geneva wheel inside the automatic tool changer (ATC). It might seem like a small component, but it plays a big role in making sure tools move and stop exactly where they should.The Geneva Wheel, 21 Tool (ATC-0025) is built to handle this precise movement. It helps control how the tool changer rotates step by step, making sure each tool lines up correctly before the next operation begins. When it’s working properly, everything feels smooth. When it’s not, you notice it immediately.

What Does the Geneva Wheel (ATC-0025) Actually Do?

In simple terms, the Geneva wheel controls how the tool carousel moves. Instead of spinning freely, it moves in fixed steps and locks into position at each stop. That’s what allows your machine to pick the right tool at the right time without guessing.In machines with a 21-tool setup, this becomes even more important. With more tools in rotation, there’s less room for error. The Geneva wheel ensures that each position is consistent, cycle after cycle.Using a part that matches factory specs really matters here. Even slight differences can throw off alignment and create problems over time.

Product Overview

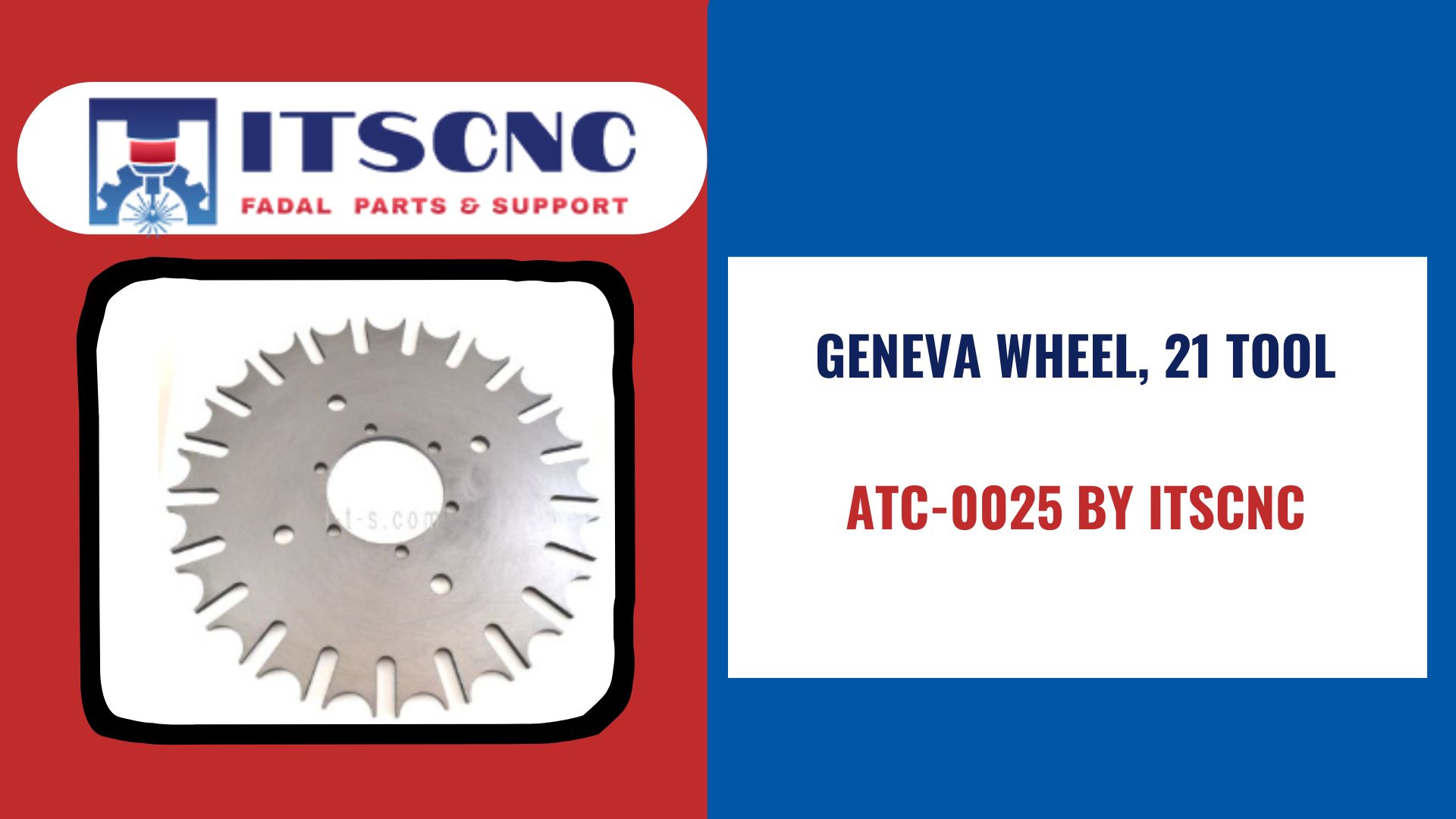

Here is the product currently available in our inventory:Geneva Wheel, 21 Tool – ATC-0025

What Happens When the Geneva Wheel Wears Out?

Like most moving parts, the Geneva wheel doesn’t last forever. It handles repeated motion, load, and stress, so wear is expected over time. The tricky part is that the issues usually start small and then gradually get worse.Here are a few signs that something might be off:

• Tools not lining up properly during changes
• Slight delays when indexing between tools
• Clicking or unusual sounds from the tool changer
• Occasional missed tool positions or stoppages

At first, you might ignore it. But over time, these small issues can slow down your workflow or even cause bigger mechanical problems. Replacing the Geneva wheel at the right time can save you from that.

Why Using the Right Geneva Wheel Makes a Difference

When you install a properly built replacement like the ATC-0025, the difference is noticeable.

• Accurate Tool Positioning: Tools align exactly where they should
• Smoother Operation: Tool changes feel consistent and predictable
• Less Downtime: Fewer interruptions during production
• Reduced Wear on Other Parts: Keeps the entire ATC system balanced

It’s one of those components that doesn’t get much attention—until it starts causing problems. Keeping it in good condition helps everything else run better.

Complete Support Solution

Finding the right part is one thing. Making sure it actually fits and works the way it should is another.At ITSCNC, the Geneva Wheel, 21 Tool (ATC-0025) is designed to match original specifications, so you don’t have to worry about compatibility issues. Whether you’re replacing a worn part or troubleshooting tool changer problems, we can help you get the right solution.

Why Choose ITSCNC for Fadal Parts

There are a lot of options out there when it comes to CNC parts, but not all of them deliver the same level of reliability.At ITSCNC, every part is tested and built with real-world usage in mind. We understand how costly downtime can be, which is why we focus on providing parts that actually perform the way they’re supposed to.Over the years, we’ve worked with countless CNC operators, and that experience helps us recommend the right components without guesswork.

Reliable Availability & Support

One of the biggest frustrations in maintenance is waiting for parts. That’s why we keep essential Fadal components like the Geneva Wheel (ATC-0025) in stock and ready to ship.If you’re unsure whether this is the right part for your machine, our team is always available to guide you. A quick check now can save you a lot of trouble later.

Contact Us

For questions, support, or to place an order, call us at 1-800-342-3475. We’re here to help you keep your machines running the way they should.ITSCNC ITSCNC
