Replacement Bearings for Fadal CNC Machines: A Complete Guide

Fadal CNC machines are known for their precision, reliability, and durability. However, like any mechanical system, they require regular maintenance to ensure optimal performance. One critical component that often needs replacement over time is the bearing system. Bearings play a vital role in reducing friction, ensuring smooth movement, and enhancing the efficiency of Fadal CNC machines. This guide will help you understand the importance of replacement bearings, signs of wear, and how to choose the right bearings for your machine.

Importance of Bearings in Fadal CNC Machines

Bearings are essential in CNC machines as they support the movement of rotating and linear components. In Fadal CNC machines, high-quality bearings are crucial for:

• Precision machining – Ensuring accurate movement and alignment of machine components.
• Reduced wear and tear – Minimizing friction to prevent excessive damage to other machine parts.
• Enhanced efficiency – Supporting high-speed operations with minimal vibration.
• Extended machine life – Properly maintained bearings contribute to the longevity of the CNC machine.

Here are the list of  Fadal bearing we are available at ITSCNC inventory:

• ATC THRUST WASHER TRA 1625 - BRG-0010
• BEARING RETAINER, 4525, BLS-0240
• Arbor Shim, .001" - HDW-0730
• ATC THRUST BEARING NTA 1625 - BRG-0009
• Thrust Washer, Idler Assembly - BRG-0016
• BEARING; BRONZE .5 X 5/8 ORIENT BRIDGE - BRG-0008
• Thrust Bearing, Idler Assembly - BRG-0015
• ATC NEEDLE BEARING B2416 - BRG-0012
• Bearing Block Rebuild Kit, Y Axis 6030/8030 NSK BEARINGS - BRG-KIT-4
• Needle Bearing - BRG-0011
• IDLER ASSY BEARING; NEEDLE - BRG-0017
• Needle Bearing, Upper Geneva Roller Assy - BRG-0013
• NSK Support Bearing, Extended Z - BRG-0030
• Idler Wheel Bearing - BRG-0112
• NSK Support Bearing, 4020MM X & 6030 Y - BRG-0022

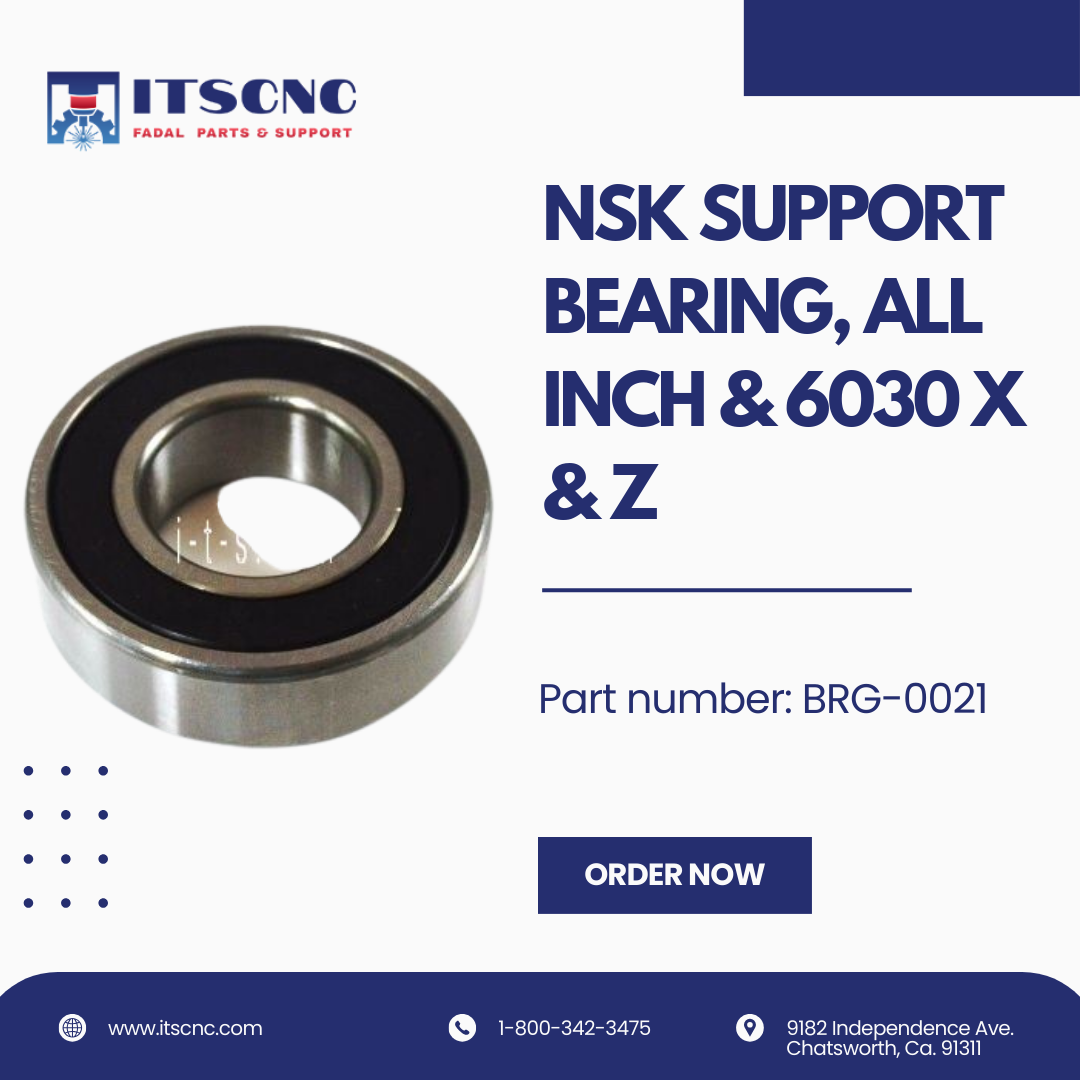

• NSK Support Bearing, All Inch & 6030 X & Z - BRG-0021
• NSK Support Bearing, 40M/3016M/EXTZ Extended Z - BRG-0023
• NSK Bearing, Greased for VMC15-5020 - BRG-0024
• BEARING; ANGULAR CONTACT - BRG-0111
• Cup Race, VH65/TR65 - BRG-0036
• Idler Wheel w/Bearings - BRG-0058
• NSK Bearing Set, Greased, w/Shim for VMC15-5020. - BRG-0024-SET
• Bearing Block Rebuild Kit, X,Y,Z, VMC15 Thru 4020 Inch - BRG-KIT-1
• Cup Race, VH65/TR65 - BRG-0038
• Tapered Roller Bearing, VH65/TR65 - BRG-0035
• BEARING; SUPPORT XYZ BALLSCREW 6535 - BRG-0159
• Bearing Block Rebuild Kit, X,Y,Z, 2216 Thru 5020a MM - BRG-KIT-2
• Tapered Roller Bearing, VH65/TR65 - BRG-0037
• TRACK; ATC SLIDE - BRG-0034
• NSK Thrust Bearings, Matched Set for VMC6030/8030 - BRG-0025
• Bearing Block Rebuild Kit, X, Z 6030/8030 NSK Bearings - BRG-KIT-3
• NSK BEARING; ANGULAR BALLSCREW MOUNT; XYZ 6535 - BRG-0156
• NSK Spindle Bearings, Upper Matched Set, Greased - BRG-0001
• NSK Spindle Bearings, Lower Matched Set, Greased - BRG-0002

Signs That Your Bearings Need Replacement

Regular inspection of your CNC machine’s bearings can prevent unexpected breakdowns. Here are common indicators that suggest it’s time to replace them:

• Excessive Noise – Grinding, clicking, or squeaking sounds may indicate worn-out bearings.
• Increased Vibration – Unusual vibrations during operation can result from bearing degradation.
• Overheating – Bearings that generate excessive heat due to friction may need replacement.
• Reduced Accuracy – If the CNC machine is producing inconsistent cuts or misalignments, faulty bearings could be the culprit.
• Visible Wear or Corrosion – Physically inspecting bearings for signs of rust, pitting, or deformation can help determine their condition.

Choosing the Right Replacement Bearings

When selecting replacement bearings for Fadal CNC machines, consider the following factors:

• Material Quality – Opt for high-grade steel or ceramic bearings that offer superior durability and heat resistance.
• Size and Compatibility – Ensure the bearings match the exact specifications of your Fadal CNC model.
• Load Capacity – Select bearings that can handle the operational loads and stress of CNC machining.
• Lubrication Requirements – Choose sealed or lubricated bearings that require minimal maintenance.
• Supplier Reputation – Purchase bearings from reputable suppliers specializing in CNC machine parts.

How to Replace Bearings in Fadal CNC Machines

Replacing bearings requires technical expertise. If you are comfortable with machine maintenance, follow these steps:

• Turn Off the Machine – Ensure safety by shutting down power before starting.
• Disassemble the Component – Carefully remove the necessary parts to access the bearing.
• Extract the Old Bearing – Use a bearing puller tool to remove the worn-out bearing.
• Install the New Bearing – Press the new bearing into place, ensuring proper alignment.
• Reassemble and Test – Put everything back together and run a test to confirm smooth operation.

Final Thoughts

Regular maintenance and timely replacement of bearings in Fadal CNC machines are essential for optimal performance and longevity. By choosing high-quality replacement bearings and following proper installation procedures, you can prevent downtime and maintain the efficiency of your CNC machine. Always refer to your machine’s manual or consult with an expert if you are unsure about the replacement process.
