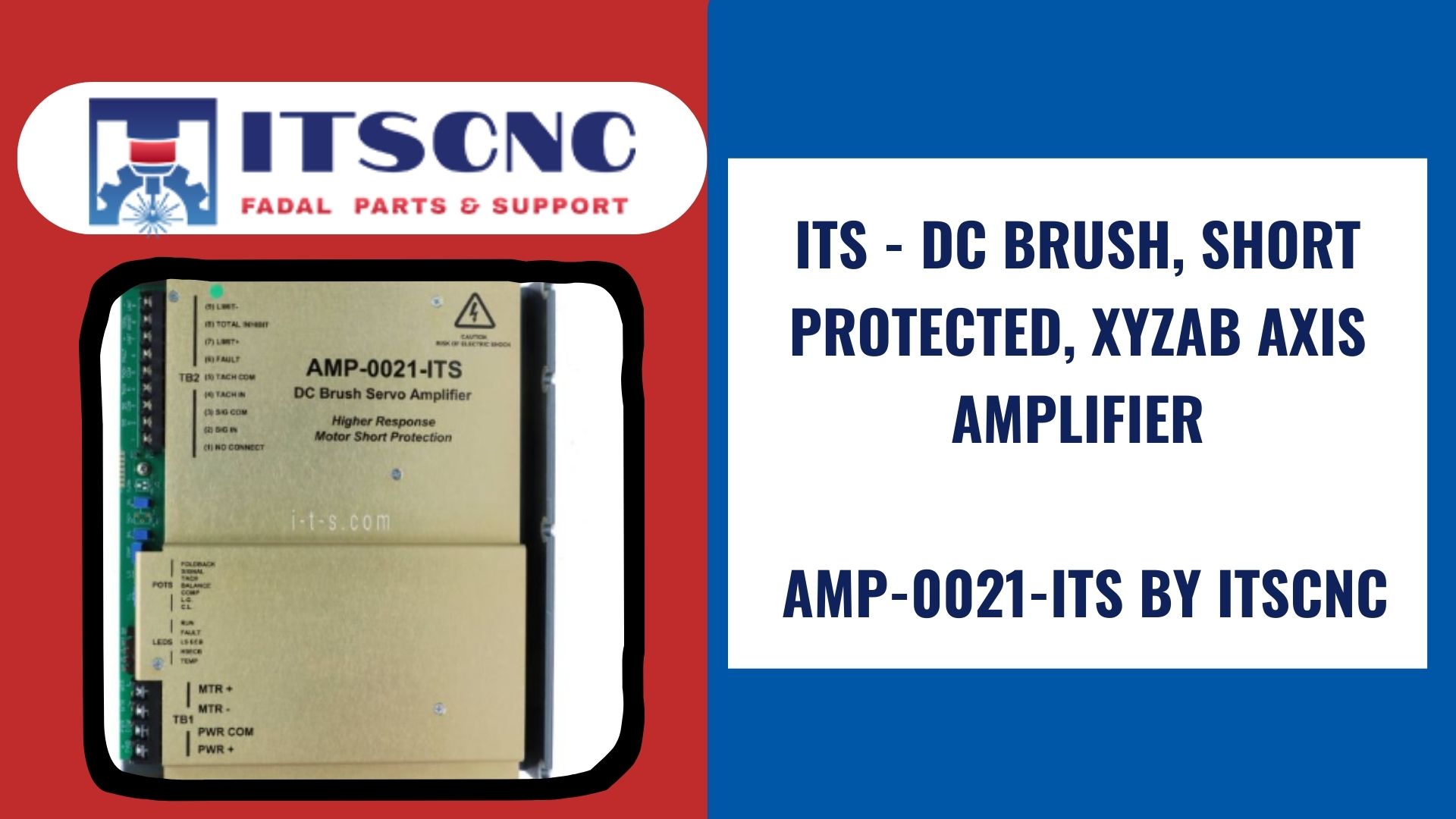

ITS Fadal DC Brush Amplifier (VM3016-6030)

The ITS Fadal DC Brush Amplifier (VM3016-6030) is a reliable replacement solution designed for Fadal VMC machines that use larger DC brush amplifiers. Supporting all axes (XYZAB), this amplifier is also suitable for use on Fadal DC rotary systems, making it a versatile option for a wide range of applications.Axis amplifiers are a critical component of any Fadal CNC machine, and the ITS version is built to deliver long-lasting performance, safety, and stability in demanding shop environments.

Designed for Larger DC Amplifier Applications

This DC Brush Amplifier is suitable for any Fadal VMC that uses the larger amplifier footprint with terminal connectors. It supports X, Y, Z, A, and B axes, providing dependable motion control across the entire machine.ITS amplifiers are engineered with current and temperature sensors, allowing the unit to respond safely to overcurrent conditions. Instead of failing catastrophically, the amplifier automatically folds current and shuts down to protect both the amplifier and the machine.

Built-In Protection for Long-Term Reliability

The ITS DC Brush Amplifier is designed with machine protection in mind. When excessive current or temperature is detected, the amplifier safely shuts down rather than overheating or failing unexpectedly.This protective design helps:

• Prevent damage to motors and drives
• Reduce costly amplifier failures
• Minimize unplanned machine downtime
• Extend the service life of CNC components

This makes it a dependable choice for shops that prioritize machine safety and longevity.

Product Specifications

• ITS Part Number: AMP-0021-ITS
• Continuous Output: 30 Amps
• Peak Output: 50 Amps
• Axis Support: XYZAB
• Machine Compatibility:
  • Fadal VMC machines using larger DC amplifiers
  • Fadal DC rotary systems
• Compatible Replacements:
  • AMC AMP-0015
  • Glentek AMP-0021
• Compatible Motors:
  • MTR-0002
  • MTR-0003
  • MTR-0125

Complete Amplifier Support Solution

ITS provides more than just replacement amplifiers—they offer a complete support solution to ensure proper diagnosis, installation, and long-term performance.

Professional Diagnosis

ITS offers technical support to help determine whether the amplifier truly needs replacement or if other issues are affecting machine performance. This expert guidance helps avoid unnecessary part replacements and saves time and cost.

Installation Instructions and Preventive Maintenance

Each amplifier includes an instruction manual with clear, step-by-step installation guidance. The manual also contains preventive maintenance tips designed to reduce future failures and help Fadal parts operate reliably for longer periods.

Warranty Coverage

All new ITS DC Brush Amplifiers come with a one-year warranty, covering defects in materials and workmanship. This warranty provides confidence and assurance in the quality of the product.

Ongoing Technical Support

With extensive Fadal engineering experience and direct interaction with Glentek, AMC, and Varedan engineers, ITS offers expert support not only during installation but also after the amplifier is in service.This continued support ensures help is available whenever technical questions or performance concerns arise.

Why Choose ITS for Fadal DC Brush Amplifiers

ITS amplifiers are built for durability, safety, and long-term reliability. Backed by deep CNC knowledge and dedicated technical support, ITS is a trusted choice for Fadal CNC operators worldwide.If you are looking for a dependable replacement for your Fadal DC Brush Amplifier, the ITS VM3016-6030 (AMP-0021-ITS) delivers proven performance, built-in protection, and professional support you can rely on.
