Fadal Glentek Universal Spindle Drive (INV-0098G) – The Complete Guide

Upgrade Your Fadal's Spindle Performance

The Fadal Glentek Universal Spindle Drive, 5hp-20hp INV-0098G is a direct replacement for Fadal CNC machines that delivers precise speed control and improved torque efficiency for 5HP-20HP spindles. This advanced drive system uses flux vector technology to give your Fadal servo-like performance without complex programming.

Key Features & Benefits

• Plug-and-Play Installation – No programming required
• Flux Vector Technology – Delivers smooth torque from 0 RPM to full speed
• Multiple Operating Modes – Supports sensored and sensorless (VFD) operation
• Wide Compatibility – Works with 5HP, 10HP, 15HP, and 20HP Fadal spindles
• Switch-Selectable Parameters – Easily configure for different RPM ranges
• Energy Efficient – Reduces power consumption vs. older spindle drives

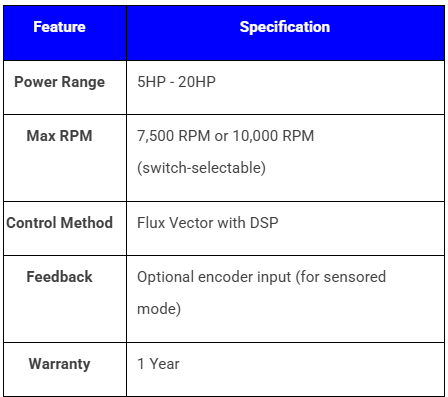

Technical Specifications

Installation & Setup

Step-by-Step Installation

1. Power Down – Disconnect machine power
2. Remove Old Drive – Unmount existing spindle drive
3. Mount Glentek Drive – Uses same mounting points as OEM
4. Connect Wiring – Match existing spindle/motor connections
5. Set Parameters – Use rotary switch to select correct HP/RPM profile

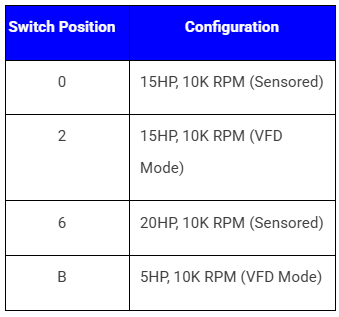

Parameter Selection

Simply turn the rotary switch to match your spindle configuration:

Why Upgrade to the Glentek Drive?

1. Improved Low-Speed Torque – Better performance at RPMs below 1,000
2. Energy Savings – More efficient than older analog drives
3. Simplified Maintenance – No tuning or complex programming needed
4. Direct Replacement – Fits all Fadal VMCs without modification

Troubleshooting Tips

 If experiencing spindle faults:

• Verify correct switch position for your spindle HP/RPM
• Check motor connections for loose wires
• Ensure proper cooling airflow to drive

Why Choose ITSCNC?

1. Genuine Glentek Product – Not an aftermarket imitation
2. 1-Year Warranty – Full replacement coverage
3. Expert Support – Help with installation & configuration
4. Fast Shipping – Get your machine back online quickly

Upgrade your Fadal's spindle performance today with the Glentek INV-0098G! Need help selecting the right drive? Contact our CNC specialists for assistance.

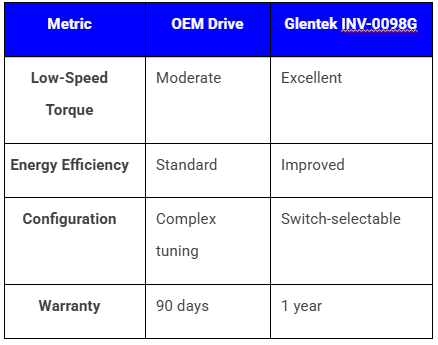

Performance Comparison
